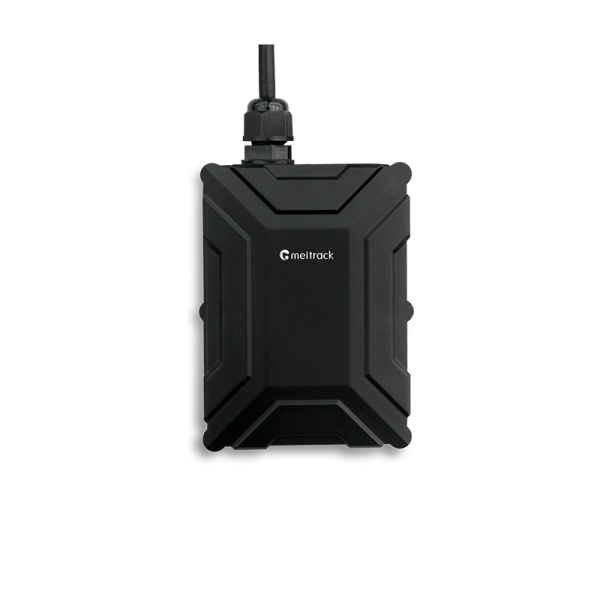

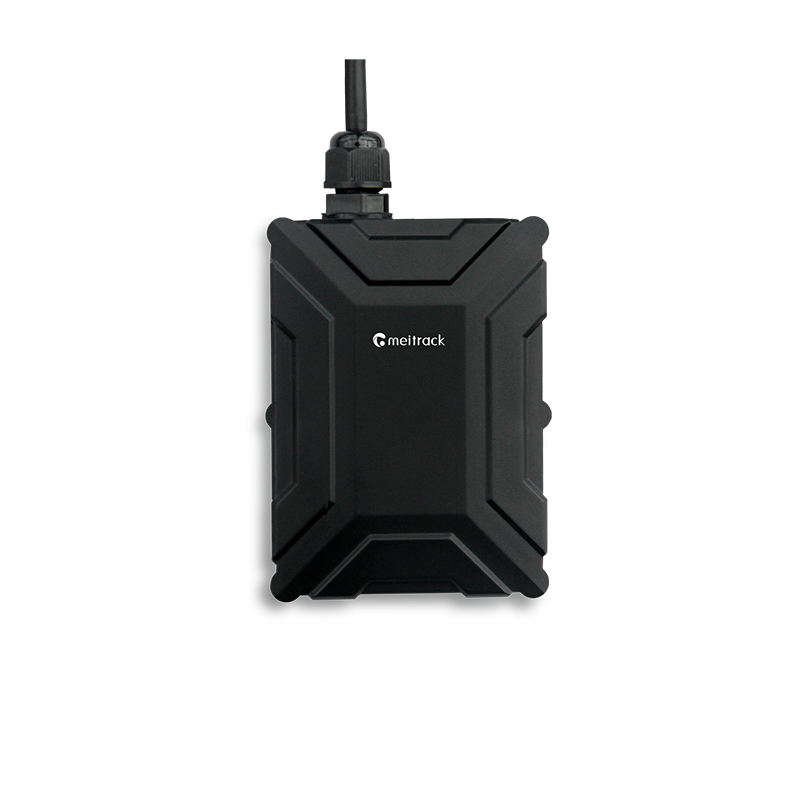

T366

IP67 Water-Resistant Vehicle Tracker

IP67 Water-Resistant
Full IP67 Immobilizer
RS232 Port
Driving Behavior Analysis

特徴
仕様

特徴

IP67 Water-Resistant

Specialized design provides a tough casing that stands up to the elements.

Full IP67 Immobilizer

This device not only boasts full IP67 protection itself but also includes an IP67-rated relay. Its water-resistant design makes it ideal for use with water vehicles, ensuring reliable protection in any environment.

RS232 Port

Support camera, fuel sensor, temperature sensor, tire pressure sensor, LED display, RFID, iButton and etc.

Driving Behavior Analysis

This system detects various driver behaviors, including idling, harsh acceleration, harsh braking, harsh cornering, collisions, and more.

仕様

Communication and Positioning
	GSM	2G
	GNSS antenna	External GPS antenna
	Positioning accuracy	2.5m
Power
	Power supply	DC 11.4–90 V/1.5 A
	Backup battery	400 mAh battery
	Power consumption	Current in standby mode: 65 mA
Physical Specifications
	Dimensions	80.5 mm x 60 mm x 23.5 mm
	Weight	100g
Operating Environment
	Operating temperature	-35°C to 80°C (available for the device without a battery)
	Operating humidity	5% to 95%
	Ingress protection	IP67
Functions
	Memory	8 MB buffer
Frequency Bands
	Africa/Europe/Middle East	T366L-E LTE FDD: B1/B3/B7/B8/B20/B28A, WCDMA: B1/B8, GSM/GPRS: B3/B8
	Americas	T366L-A LTE FDD: B2/B4/B12, WCDMA: B2/B4/B5
	Australia	T366L-AU LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28, LTE TDD:B40, WCDMA: B1/B2/B5/B8, GSM/GPRS: B2/B3/B5/B8 T366L-AUT LTE FDD:B1/B3/B5/B7/B28, WCDMA: B1/B5
Others
	OTA/FOTA	OTA
	Certification	CE, RoHS
Supported Peripherals
	RFID	√
	iButton	√
	Relay (12 V/24 V)	√
	Buzzer	√
	Ultrasonic fuel level sensor	√
	Fuel level sensor	√
	Digital temperature sensor	√
	Battery	√
