GSM信号がない場所で自動的に衛星ネットワークに切り替えて利用できます。
イリジウム社の認定リセラーとして、MeitrackはイリジウムSBDサービスを提供し、地球上どこでも通信可能になります。

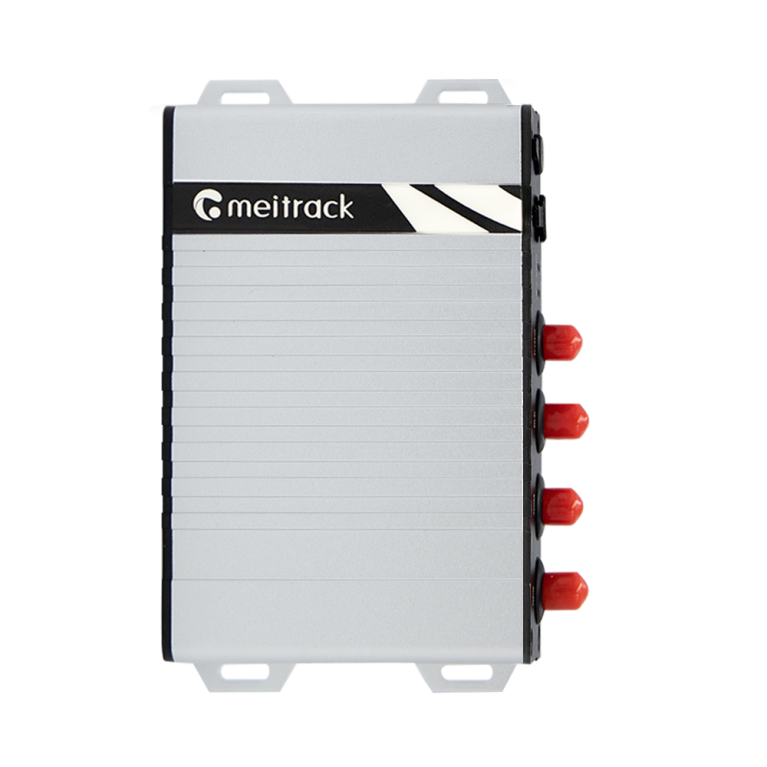

T622G-F9はイリジウム社の認定を取得しました。
CAN Bus インタフェースを介して、さまざまな車両のCANデータを読み取ることが可能です。
CAN Bus、リレー、燃料センサー、カメラ、RFIDリーダーなど周辺機器に対応可能です。
Communication and Positioning |
||
|---|---|---|
| GSM | 4G (LTE CAT M1/NB1), 3G, 2G |
|
| GNSS antenna | GPS |
|
| Iridium SBD | √ |
|
| Wi-Fi | √ |
|
| Positioning accuracy | 2.5m |
|
| Sensitivity | -161 dB |
|
Power |
||
| Power supply | DC 11.4–36 V/1.5 A |
|
| Backup battery | 400 mAh/3.7V |
|
| Power consumption | Current in sleep mode: 11 mA |
|
| Working hour | 45 hours in power-saving mode; 4 hours in normal mode |
|
Physical Specifications |
||
| Dimensions | 105 x 65 x 26 mm |
|
| Weight | 190g |
|
Operating Environment |
||
| Operating temperature | -10°C to 55°C |
|
| Operating humidity | 5% to 95% |
|
Functions |
||
| Memory | 8 MB |
|
Frequency Bands |
||
| Global | T622G-F9 |
|
| Africa/Europe/Middle East | T622E-F9 |
|
Others |
||
| OTA/FOTA | OTA |
|
| Certification | CE (T622G-F9), TELEC (T622G-F9) |
|
Supported Peripherals |
||
| RFID | √ |
|
| Relay (12 V/24 V) | √ |
|
| Ultrasonic fuel level sensor | √ |
|
| Camera | √ |
|
12V/24V relays
RFID reader
RS232 camera
