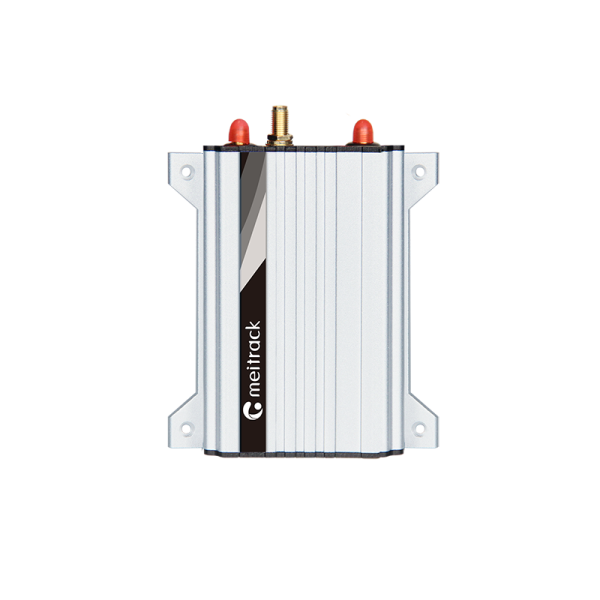

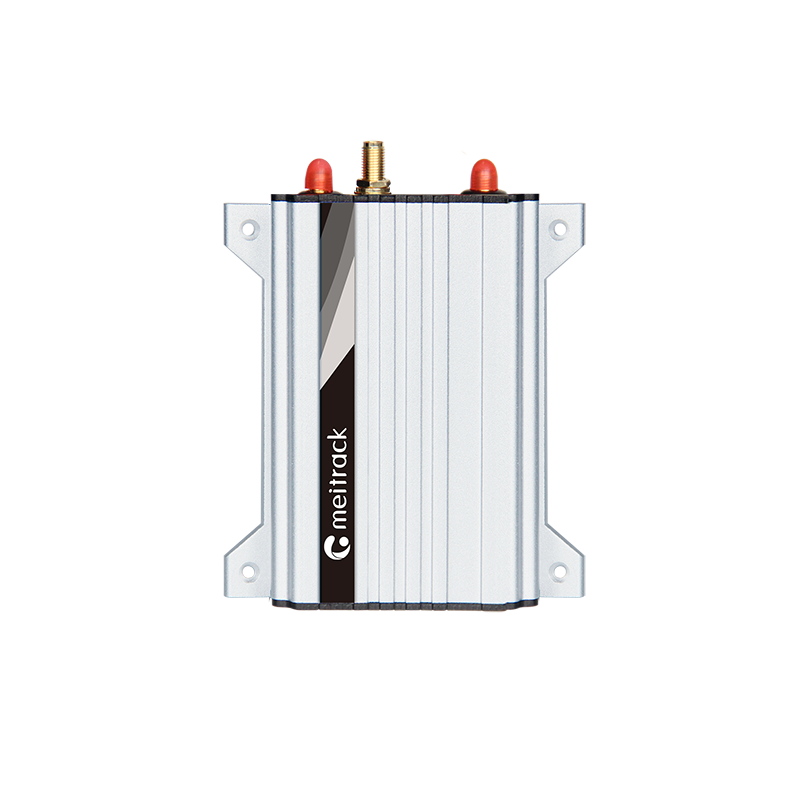

T622E-F9/T622G-F9

  • Iridium and Meitrack Combined Device
  • Iridium SBD
  • CAN Bus Interface
  • Multi-Functional
Add to Wishlist
Trust Badge Image

特徴





仕様

Communication and Positioning

GSM

4G (LTE CAT M1/NB1), 3G, 2G

GNSS antenna

GPS

Iridium SBD

Wi-Fi

Positioning accuracy

2.5m

Sensitivity

-161 dB

Power

Power supply

DC 11.4–36 V/1.5 A

Backup battery

400 mAh/3.7V

Power consumption

Current in sleep mode: 11 mA

Working hour

45 hours in power-saving mode; 4 hours in normal mode

Physical Specifications

Dimensions

105 x 65 x 26 mm

Weight

190g

Operating Environment

Operating temperature

-10°C to 55°C

Operating humidity

5% to 95%

Functions

Memory

8 MB

Frequency Bands

Global

T622G-F9 GSM/GPRS: 850/900/1800/1900 MHz UMTS/HSDPA: 800/850/900/1900/2100 MHz

Africa/Europe/Middle East

T622E-F9 GSM/GPRS: 850/900/1800/1900 MHz Cat M1/Cat NB2: LTE‐FDD:B1/B2/B3/B4/B5/B8/B12/B13/B14(Cat-M1only) /B18/B19/B20/B25/B26/B27(Cat M1 only)/B28/ B66/B71(Cat NB2 only) /B85

Others

OTA/FOTA

OTA

Certification

CE (T622G-F9), TELEC (T622G-F9)

Supported Peripherals

RFID

Relay (12 V/24 V)

Ultrasonic fuel level sensor

Camera
