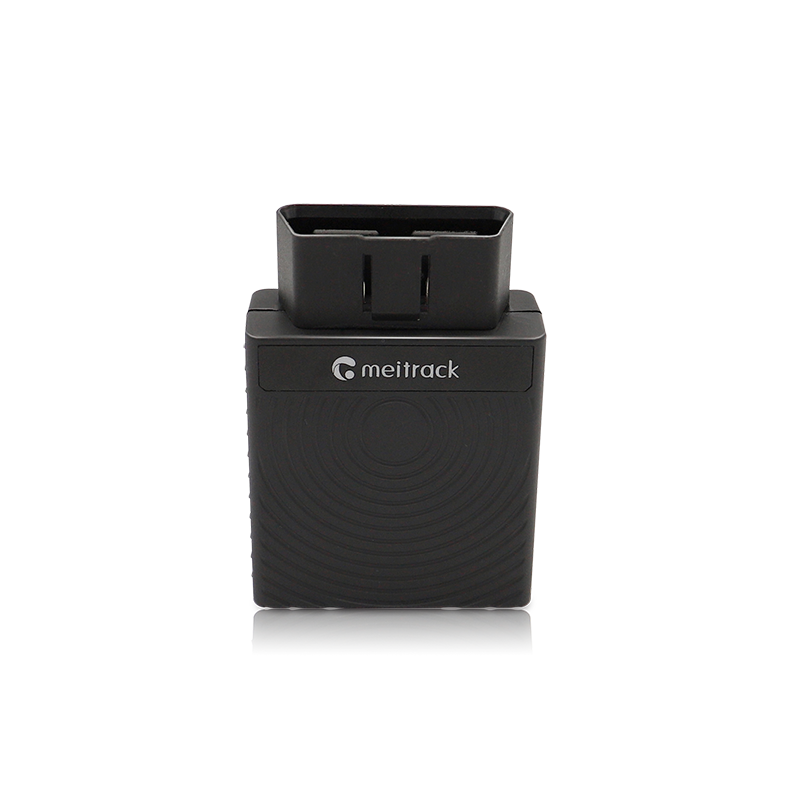

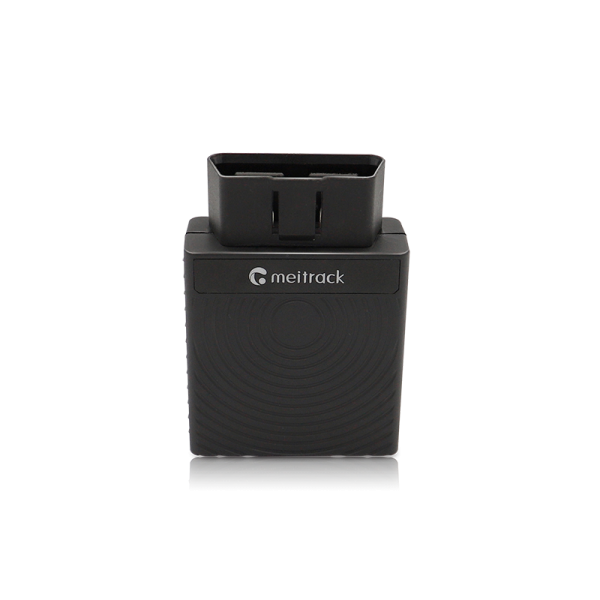

Plug and Play Vehicle Tracker with an OBD II Plug
Functions as an in-vehicle WiFi hotspot, allowing up to 8 WiFi-enabled devices to connect, providing passengers with internet access on the go.
An easily-installed tracker for private cars and other motor vehicles equipped with a cigarette lighter receptacle.
Read a wide range of OBD data including driving behavior, fuel, mileage, speed, and temperature etc.
An instant alert will be received when the device is removed.
Communication and Positioning |
||
|---|---|---|
| GSM | 4G (LTE Cat 1/4/M1/NB2), 3G,2G |
|
| Wi-Fi hotspot | 2.4 GHz WiFi hotspot |
|
| Bluetooth | Support Bluetooth 4.2 and Bluetooth 5.0 |
|
| Positioning accuracy | 2.5m |
|
Power |
||
| Power supply | DC 11.5–36 V / 1 A |
|
| Backup battery | (optional) 200 mAh/3.7 V |
|
| Power consumption | Current in standby mode: 100 mA |
|
| Charging | (a)Magnetic (b)Wireless |
|
| Working hour | Power-saving mode: 20 hours; Normal working mode: 2 hour |
|
Physical Specifications |
||
| Dimensions | 67 mm x 51 mm x 23.5 mm |
|
| Weight | 60g |
|
| Operating temperature | -20°C～55°C |
|
Operating Environment |
||
| Operating humidity | 5% to 95% |
|
Functions |
||
| Memory | 8 MB buffer |
|
Frequency Bands |
||
| Global | TC68E: GSM: B2/B3/B5/B8 Cat M1/NB2: LTE-FDD:B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/ B19/B20/B25/B26/B27/B28/B66/B71/B85 |
|
| Africa/Europe/Middle East | TC68L-E FDD: B1/B3/B7/B8/B20/B28A, WCDMA: B1/B8, GSM: B3/B8 TC68SL-E (No WiFi version band)： LTE FDD:B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM/GPRS: B3/B8 TC68SL-E (WiFi version band)： LTE FDD:B1/B3/B5/B7/B8/B20 WCDMA: B1/B5/B8 GSM/GPRS: B3/B8 |
|
| Americas | No WiFi version band： TC68L-A: FDD: B2/B4/B12, WCDMA: B2/B4/B5 WiFi version band： TC68L-A: FDD: B2/B4/B12, WCDMA: B2/B4/B5 |
|
| Australia | No WiFi version band： TC68L-AU: FDD: B1/B2/B3/B4/B5/B7/B8/B28, TDD: B40 WiFi version band: TC68L-AU: FDD: B1/B2/B3/B4/B5/B7/B8/B28, TDD: B40 WCDMA: B1/B2/B5/B8, GSM: B2/B3/B5/B8 |
|
| Japan | No WiFi version band： TC68L-J: FDD: B1/B3/B8/B18/B19/B26 WiFi version band： TC68L-J: FDD: B1/B3/B8/B18/B19/B26, TDD: B41, WCDMA: B1/B6/B8/B19 |
|
Others |
||
| OTA/FOTA | FOTA |
|
| Certification | CE, CITC |
|
Supported Peripherals |
||
| Battery | √ |
|
