Bluetooth温湿度センサーおよびBluetoothビーコンに対応し、ワイヤレスでの環境・資産監視を実現します。
内蔵の2.4 GHz Wi-Fiは、対応するネットワーク環境における直接的なデータ転送をサポートしています。

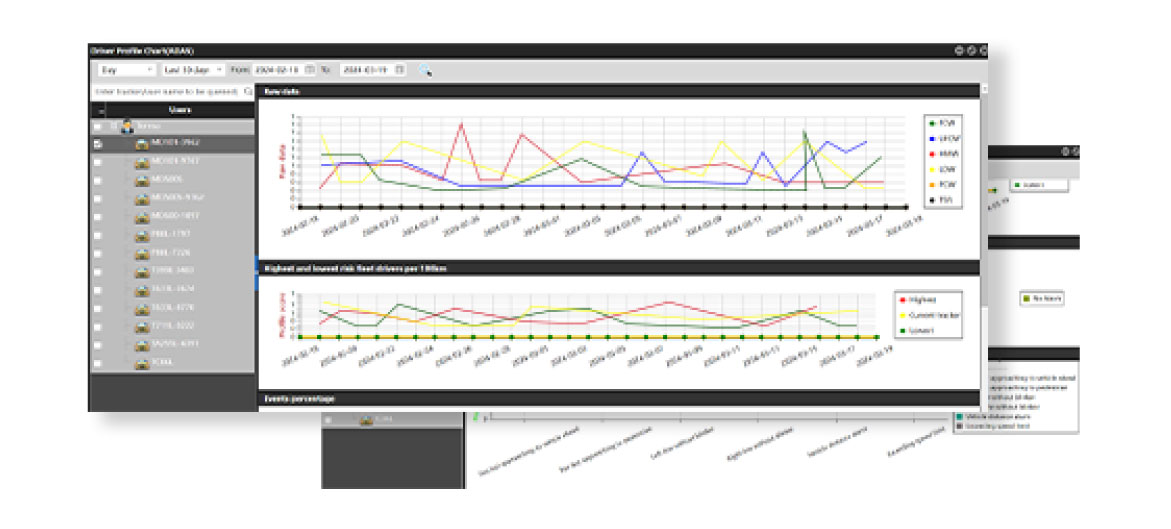

急加速、急ブレーキ、急旋回、アイドリングなどの運転イベントを検出し、効率的なフリート管理を支援します。
柔軟な車両およびデバイスの統合を実現するため、複数のインターフェースと周辺機器接続に対応しています。
Communication and Positioning |
||
|---|---|---|
| GSM | 4G LTE |
|
| GNSS antenna | GPS/GLONASS/BeiDou |
|
| Bluetooth | Bluetooth 5.3 |
|
| Positioning accuracy | 2.5 meters |
|
Power |
||
| Power supply | DC 11.4–90 V / 1.5 A |
|
| Backup battery | 400 mAh / 3.7 V |
|
| Power consumption | 65 mA (standby) |
|
Physical Specifications |
||
| Dimensions | 80.5 mm × 60 mm × 23.5 mm |
|
| Weight | 100 g |
|
Operating Environment |
||
| Operating temperature | -35°C to 80°C (without battery); -10°C to 60°C (with battery) |
|
| Operating humidity | 5% to 95% |
|
| Ingress protection | IP67 |
|
Functions |
||
| Memory | 8M |
|
Frequency Bands |
||
| Global | T799L-GFW1B5U2 |
|
| Latin America | T799L-LAFW1B5U2 |
|
| European | T799L-EFW1B5U2 |
|
| China | T799L-CFW1B5U2 |
|
Others |
||
| Certification | CE |
|
Supported Peripherals |
||
| RFID | √ |
|
| iButton | √ |
|
| Relay (12 V/24 V) | √ |
|
| Buzzer | √ |
|
| BLE temperature & humidity sensor | √ |
|
| Fuel level sensor | √ |
|
| Digital temperature sensor | √ |
|
| Ultrasonic fuel level sensor | √ |
|
AST101 Bluetooth Temperature & Humidity Sensor
AST103 Bluetooth Temperature & Humidity Sensor
.png
)
A54fuel level sensor

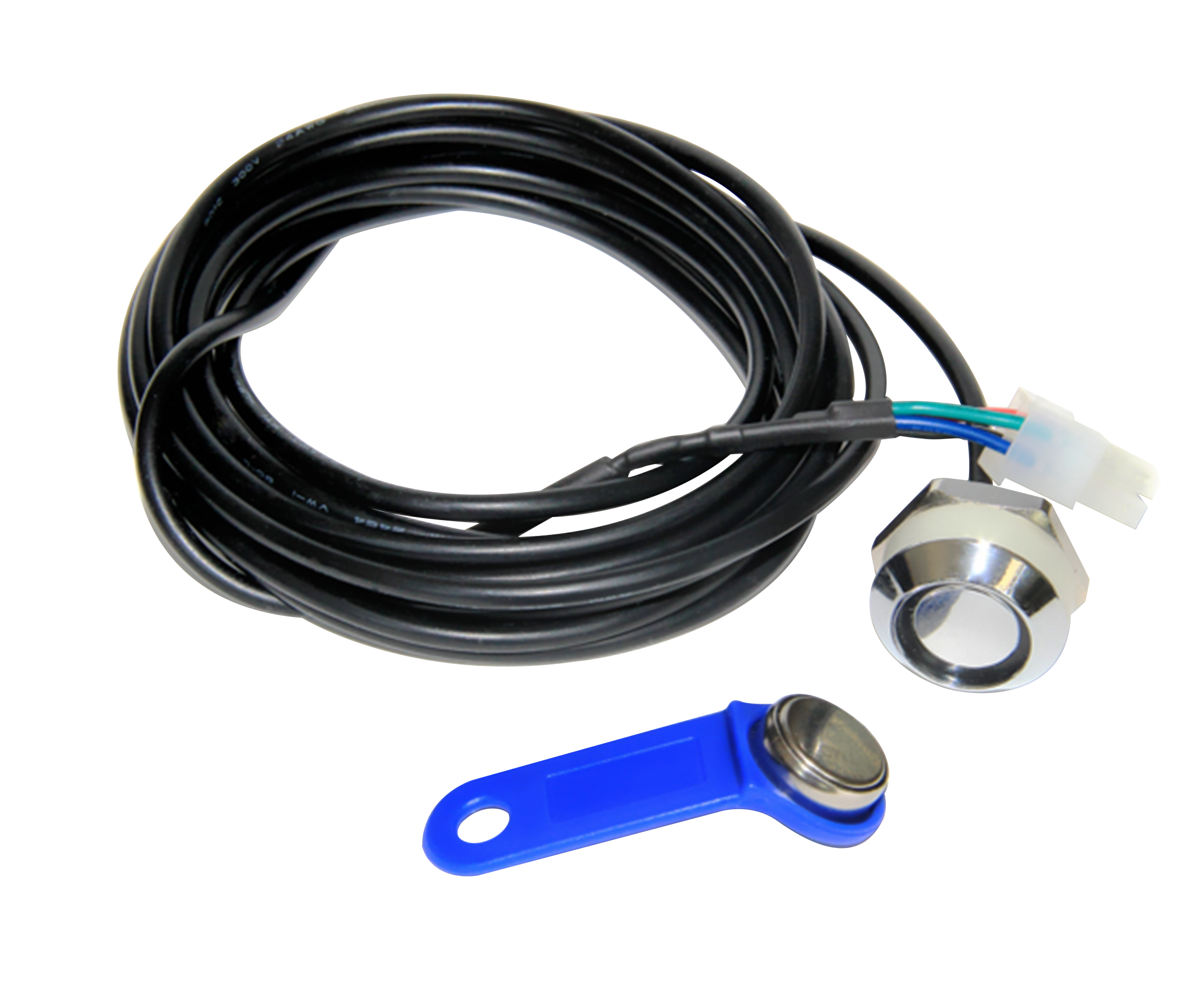

iButton reader
RFID reader
Ultrasonic Fuel Sensor (Range 100/250cm)
.png
)
Door magnetic sensor
Digital temperature sensor
Product User Guide | ||||
|---|---|---|---|---|
T633Li flyer | ||||
MEITRACK_T633Li_User_Guide | 1.0 | 2025-09-30 | ||
T622E-F9 T622G-F9 f1yer | ||||
Meitrack T622 Series User Guide | V1.3 | 2021-02-03 | ||
Protocol | ||||
|---|---|---|---|---|
MEITRACK T633Li Protocol | V1.2 | 2026-3-15 | ||
Meitrack T622G_F9 CCE Protocol | V1.0 | 2023-8-24 | ||
Meitrack SMS Protocol | V3.0 | 2022-7-18 | ||
Aided Software | ||||
|---|---|---|---|---|
Meitrack Manager (New Version) | V6.0 | 2024-03-26 | ||
Meitrack Manager User Guide (New Version) | V2.0 | 2023-10-23 | ||
OTA User Guide | V1.3 | 2021-12-29 | ||
USB232_Driver |
|
| ||
WIN11 RS232 USB_Driver |
|
| ||
Meitrack Family GPS Tracking System | ||||
|---|---|---|---|---|
Meitrack MS03 User Guide | V1.0 | 2022-1-20 | ||
Meitrack MS03 for iOS | V3.1 | 2022-1-20 | ||
Meitrack MS03 for Android | V2.5 | 2022-1-20 | ||
Accessories User Guide | ||||
|---|---|---|---|---|
Meitrack ASUF103 & ASUF104 Bluetooth Ultrasonic Fuel Level Sensor User Guide | V1.3 | 2023-6-21 | ||
Meitrack Camera User Guide | V1.5 | 2017-1-19 | ||
Mobileye User Guide | V1.5 | 2017-1-19 | ||
Garmin Navigator User Guide | V1.5 | 2017-1-19 | ||
LLS Fuel Level Sensor User Guide | V1.5 | 2017-1-19 | ||
Meitrack Ultrasonic Fuel Level Sensor User Guide | V2.1 | 2022-9-17 | ||
Accessories App | ||||
|---|---|---|---|---|
A76 configuration tool | ||||
ASUF400 configuration tool | ||||
FuelGuard | ||||
